Sumitomo

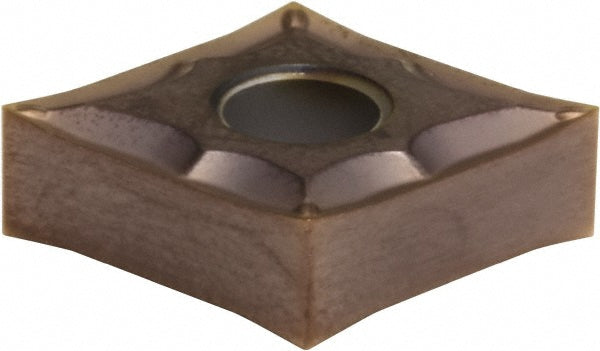

CNGG120401N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 10HVW06
MFR# 10HVW06ISO/ANSI# CNGG120401N-SUSeries CN
$14.10List $18.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HVW06 is a CNGG120401N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNGG430ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120401N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeG
