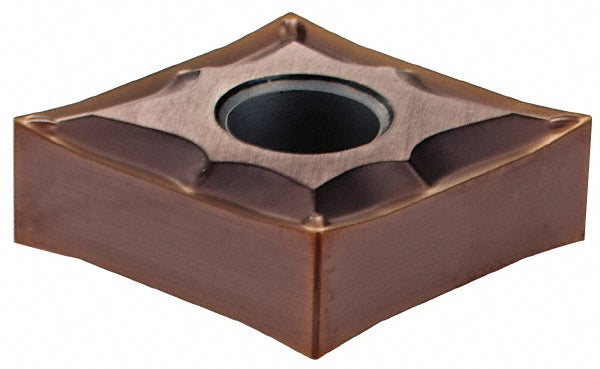

CNGG120402N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWAEN
MFR# 10HWAENISO/ANSI# CNGG120402N-SUSeries CN
$14.10List $18.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HWAEN is a CNGG120402N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeCNGG430.5ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120402N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeG
