Sumitomo

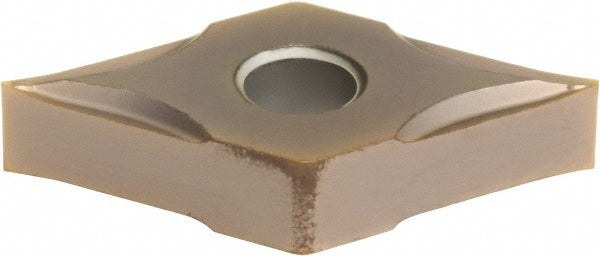

DNGG150404N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWAEW
MFR# 10HWAEWISO/ANSI# DNGG150404N-SUSeries DN
$21.13List $26.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HWAEW is a DNGG150404N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeDNGG431ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeG
