VNGG160404N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWAEZ
MFR# 10HWAEZISO/ANSI# VNGG160404N-SUSeries VN
$19.21List $24.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description

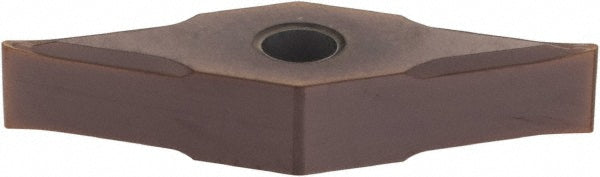

The Sumitomo 10HWAEZ is a VNGG160404N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeVNGG331ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160404N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeG
