Sumitomo

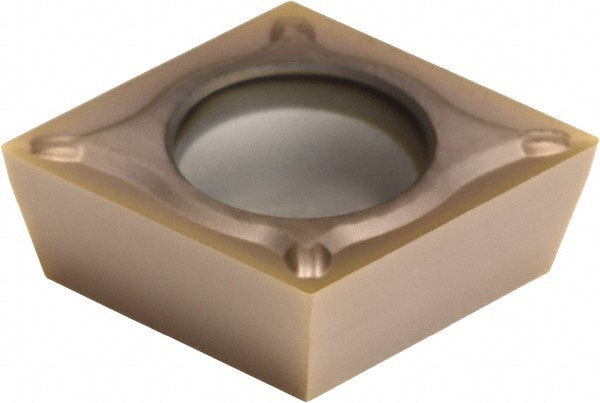

CPGT09T302N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWW0N
MFR# 10HWW0NISO/ANSI# CPGT09T302N-SUSeries CP
$14.50List $18.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HWW0N is a CPGT09T302N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeCPGT32.50.5ESU
Chip breakerESU
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleCPGT
Insert thickness in5/32
Iso codeCPGT09T302N-SU
Manufacturer gradeAC520U
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeG
