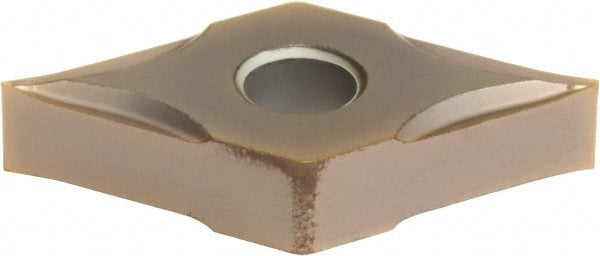

DNGG150401N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWW13

Sumitomo

DNGG150401N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWW13

MFR# 10HWW13ISO/ANSI# DNGG150401Series DN

$18.37List $23.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC520U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 10HWW13 is a DNGG150401N-SU carbide indexable insert, grade AC520U, TiAlN coated.

Specifications

Ansi insert codeDNGG430
Ansi size code430
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code430
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150401N-SU
Iso insert codeDNGG150401
Iso size code150401
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
