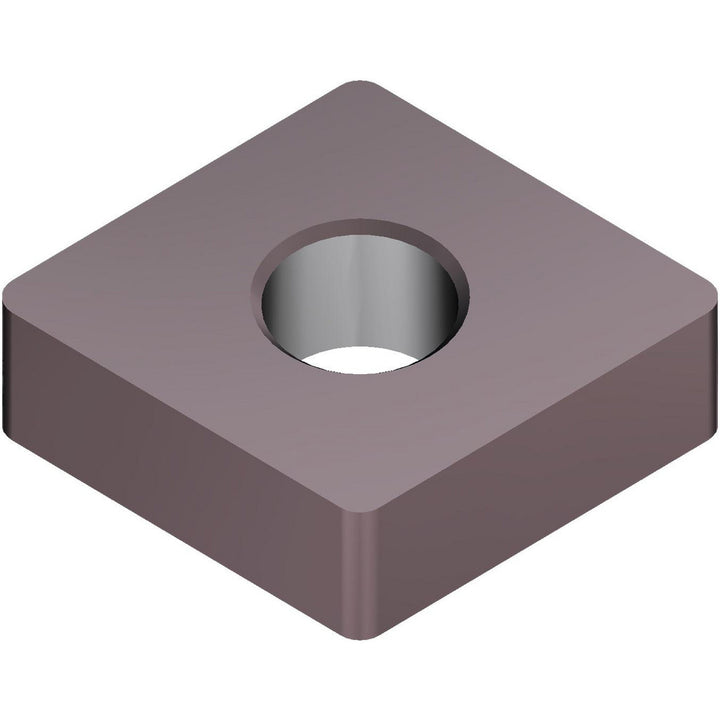

CNGA 120408 Carbide Insert, Grade AC503U, TiAlCrN - Sumitomo 10JJ957

Sumitomo

CNGA 120408 Carbide Insert, Grade AC503U, TiAlCrN - Sumitomo 10JJ957

MFR# 10JJ957ISO/ANSI# CNGA120408Cat# CNGA432-AC503USeries CN

$12.80List $16.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC503U
MaterialCarbide
CoatingTiAlCrN

Description

The Sumitomo 10JJ957 is a CNGA 120408 carbide indexable insert, grade AC503U, TiAlCrN coated. Suited for hardened steel.

Specifications

Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiAlCrN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 120408
Iso insert codeCNGA120408
Iso size code120408
Manufacturers catalog numberCNGA432-AC503U
Manufacturer gradeAC503U
Material gradeH10
Multi use toolYes
Primary workpiece materialHardened Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
