Sumitomo

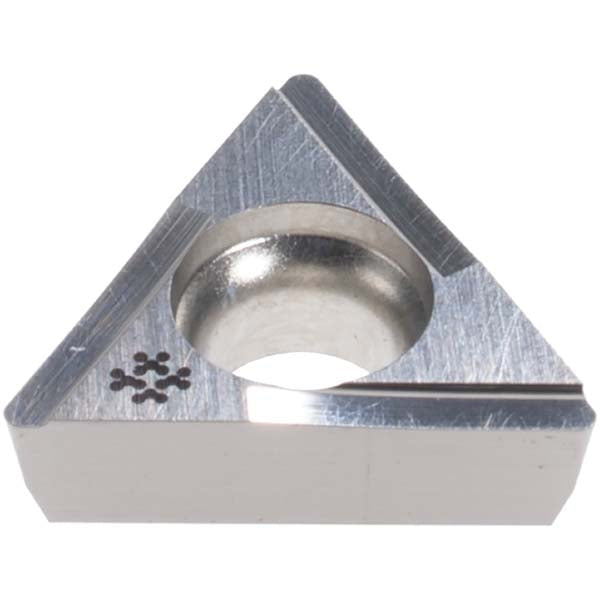

TPGT110304L-SD Cermet Insert, Grade T1500A - Sumitomo 10JT771
MFR# 10JT771ISO/ANSI# TPGT110304L-SDSeries TP
$13.60List $17.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeT1500A
MaterialCermet
Description
The Sumitomo 10JT771 is a TPGT110304L-SD cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Ansi codeTPGG221L
Chip breakerG
Clearance codeP
Corner radius in1/64
Hole diameter0.1339
Included angle60.0
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4331
Insert materialCermet
Insert shapeTriangle
Insert size code221
Insert styleTPGG
Insert thickness in1/8
Iso codeTPGT110304L-SD
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
