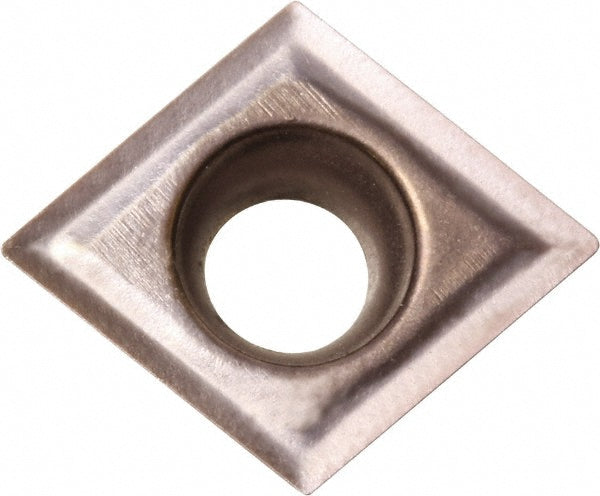

CPGT080204N-SD Cermet Insert, Grade T1500A - Sumitomo 10JT805
MFR# 10JT805ISO/ANSI# CPGT080204N-SDSeries CPGT
$17.53List $22.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeT1500A
MaterialCermet
Description
The Sumitomo 10JT805 is a CPGT080204N-SD cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Chip breakerSD
Clearance codeP
Corner radius in1/64
Hole diameter0.1339
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3150
Insert materialCermet
Insert shapeDiamond
Insert size code2.51.5
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT080204N-SD
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
