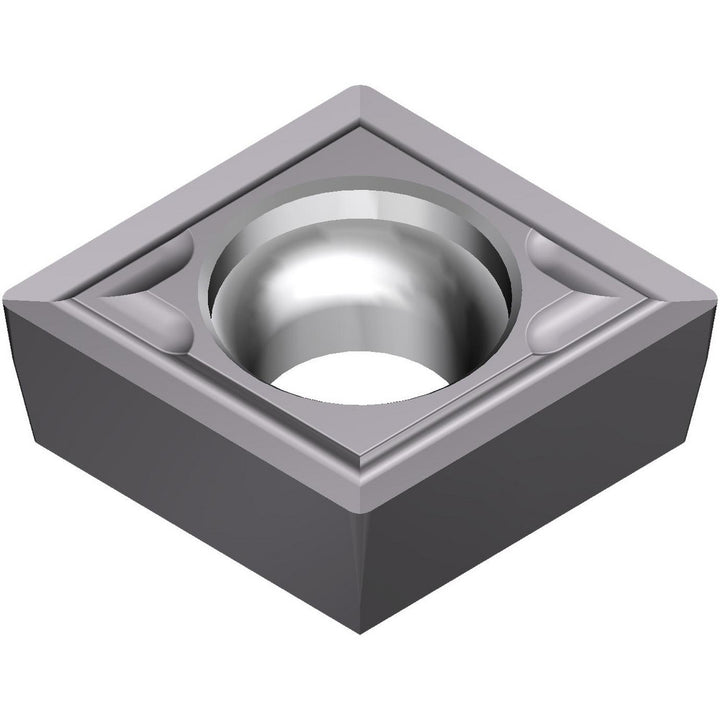

CCGT09T302MN-SC Solid Carbide Insert, Grade AC1030U, Absotech Bronze - Sumitomo 10R4AMS
MFR# 10R4AMSISO/ANSI# CCGT09T302MN-SCCat# CCGT32.50.5MEFM-AC1030USeries CC
$13.47List $17.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC1030U
MaterialSolid Carbide
CoatingAbsotech Bronze
Description
The Sumitomo 10R4AMS is a CCGT09T302MN-SC solid carbide indexable insert, grade AC1030U, Absotech Bronze coated. Suited for cast iron, stainless steel, steel.
Specifications
Ansi codeCCGT32.50.5MEFM
Chip breakerMEFM
Clearance codeC
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0078
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1398
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T302MN-SC
Manufacturers catalog numberCCGT32.50.5MEFM-AC1030U
Manufacturer gradeAC1030U
Material gradeM30; P30
Multi use toolYes
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Rake angle6
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
