Sumitomo

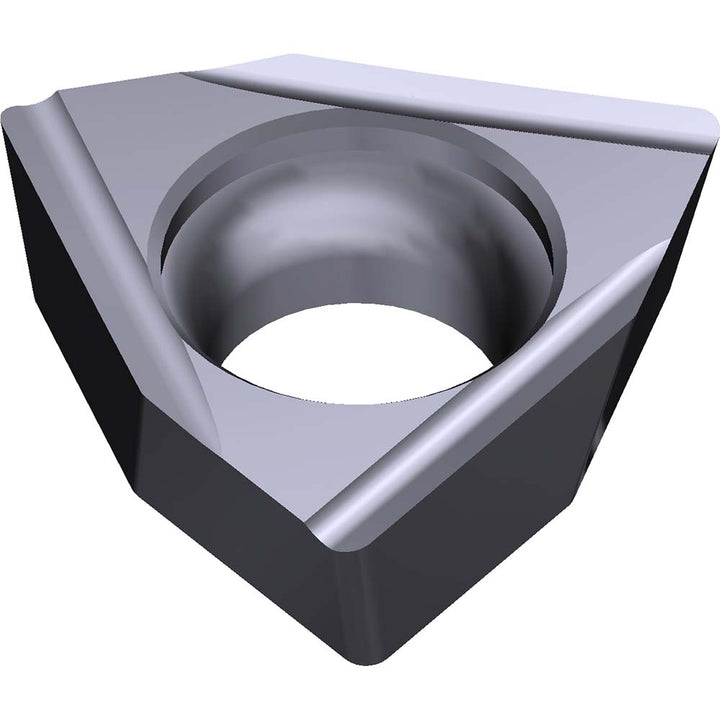

WBGT060102R-FX Carbide Insert, Grade AC5015S, Absotech Bronze - Sumitomo 10T5ABU
MFR# 10T5ABUISO/ANSI# WBGT060102R-FXCat# WBGT520.5RFX-AC5015SSeries AC5000S
$16.45List $20.73
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeAC5015S
MaterialCarbide
CoatingAbsotech Bronze
Description
The Sumitomo 10T5ABU is a WBGT060102R-FX carbide indexable insert, grade AC5015S, Absotech Bronze coated. Suited for non-ferrous metal, superalloy.
Specifications
ChipbreakerFX
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0079
Hole diameter2.2000
Included angle80
Inscribed circle0.1563
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code520
Insert styleWBGT
Iso codeWBGT060102R-FX
Length0.1260
Manufacturers catalog numberWBGT520.5RFX-AC5015S
Manufacturer gradeAC5015S
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
