Sumitomo

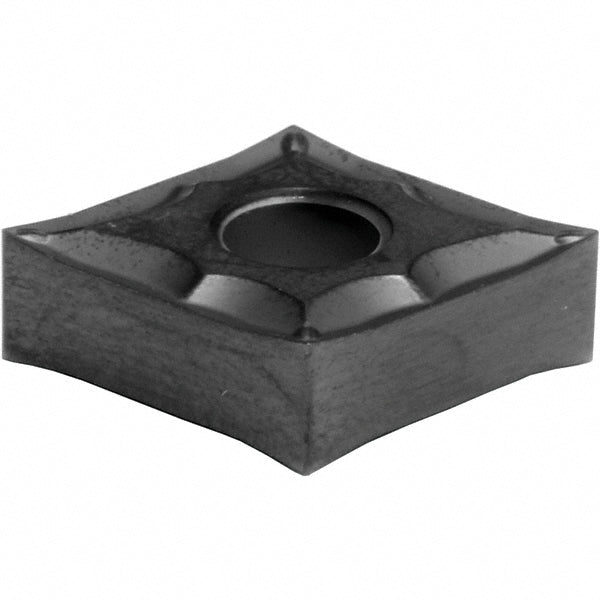

CNGG120404N-SU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 10T5AEP
MFR# 10T5AEPISO/ANSI# CNGG120404N-SUCat# CNGG431ESUAC5015SSeries AC5000S
$15.09List $19.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 10T5AEP is a CNGG120404N-SU carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerESU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120404N-SU
Manufacturers catalog numberCNGG431ESUAC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
