Sumitomo

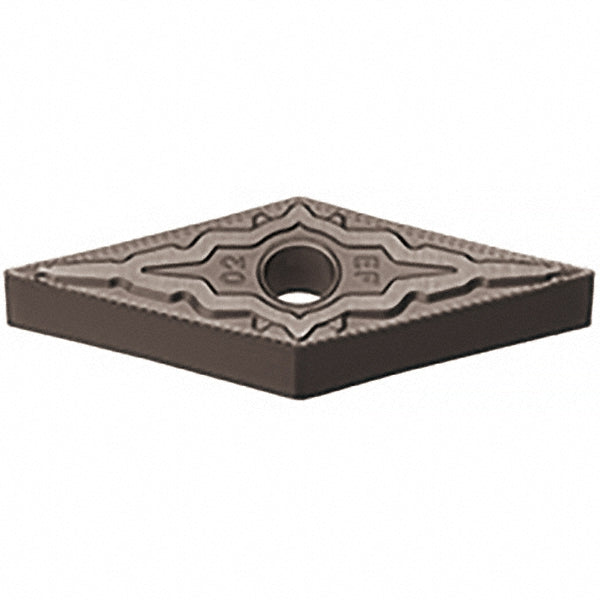

VNGG160402N-EF Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 10T5AQH
MFR# 10T5AQHISO/ANSI# VNGG160402N-EFCat# VNGG330.5EEF-AC5015SSeries AC5000S
$20.57List $26.37
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 10T5AQH is a VNGG160402N-EF carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerEEF
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code330.5
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160402N-EF
Manufacturers catalog numberVNGG330.5EEF-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
