Sumitomo

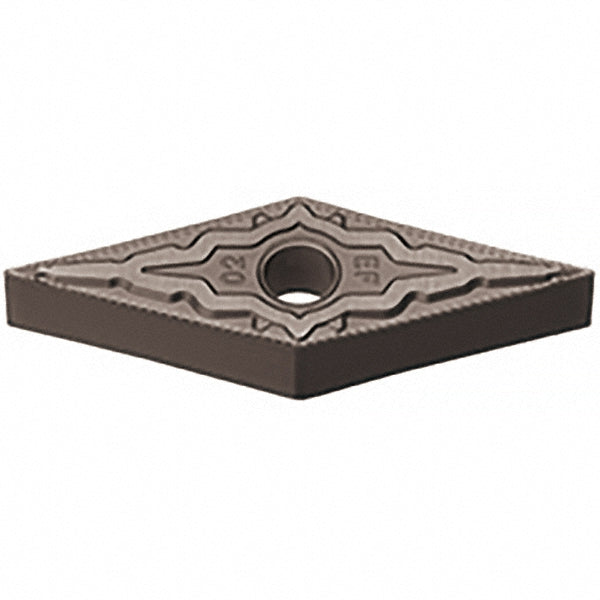

Diamond 3/8" IC Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 10T5AQJ
MFR# 10T5AQJCat# VNGG331EEF-AC5015SSeries AC5000S
$20.57List $26.37
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 10T5AQJ is a carbide indexable insert, grade AC5015S, TiAlSiN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNGG
Insert thickness in3/16
Manufacturers catalog numberVNGG331EEF-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
RakeNegative
Rake angle20
Relief angle0
Tolerance codeG
