Sumitomo

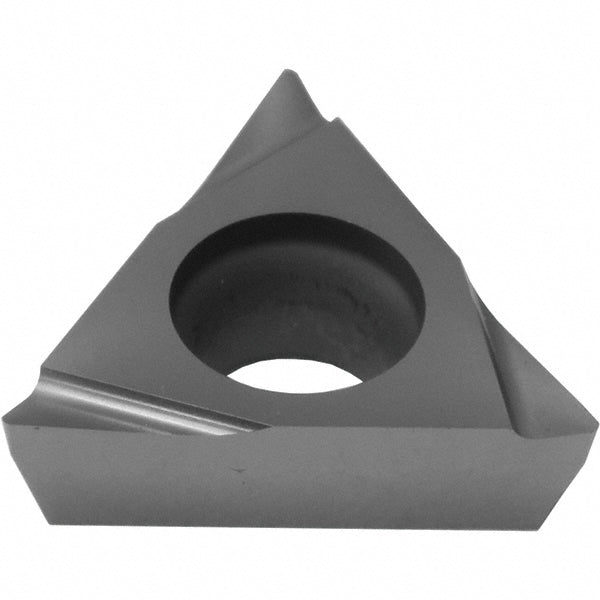

TPGT1103003R-FY Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 10T6506
MFR# 10T6506ISO/ANSI# TPGT1103003R-FYSeries AC5000S
$15.44List $19.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 10T6506 is a TPGT1103003R-FY solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeTPGT22.001RFY
Chip breakerFY
Clearance codeP
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0012
Cutting directionRight Hand
Full radiusNo
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code22
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT1103003R-FY
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
