Sumitomo

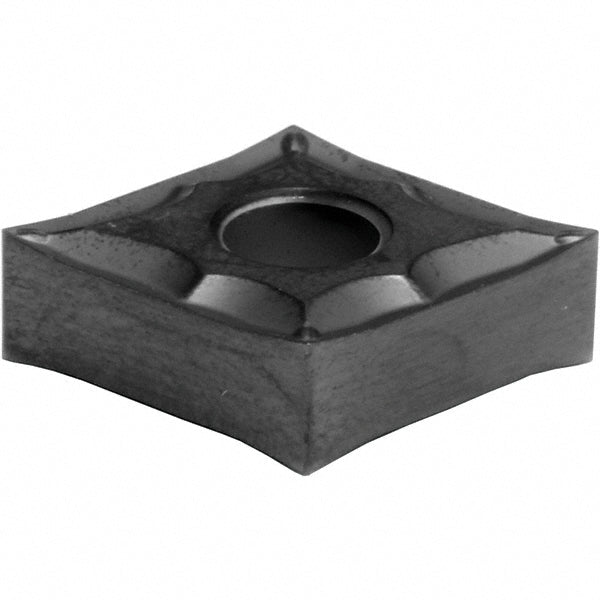

CNGG120404N-SU Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 10T6AEP
MFR# 10T6AEPISO/ANSI# CNGG120404N-SUCat# CNGG431ESUAC5025SSeries AC5000S
$14.10List $18.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 10T6AEP is a CNGG120404N-SU solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeCNGG431ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120404N-SU
Manufacturers catalog numberCNGG431ESUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
