Sumitomo

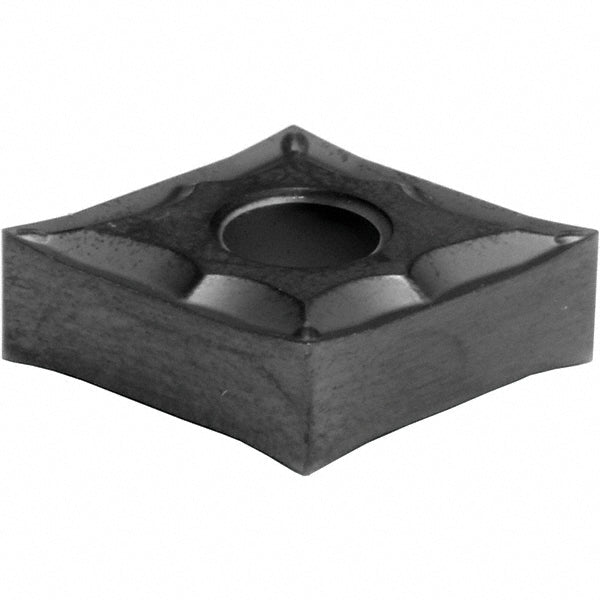

CNGG120408N-SU Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 10T6AEQ
MFR# 10T6AEQISO/ANSI# CNGG120408N-SUCat# CNGG432ESUAC5025SSeries AC5000S
$14.10List $18.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 10T6AEQ is a CNGG120408N-SU carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerESU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408N-SU
Manufacturers catalog numberCNGG432ESUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
