Sumitomo

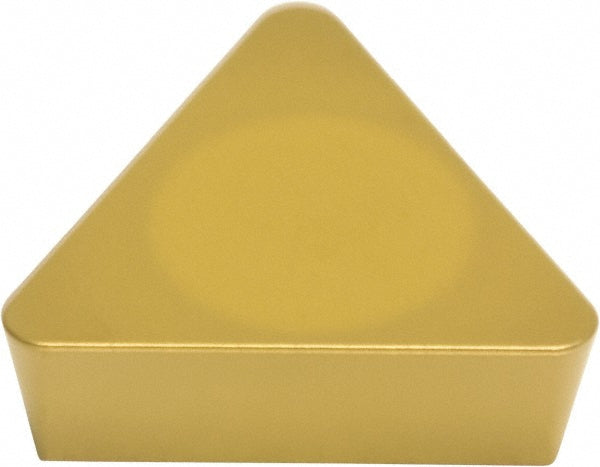

TPGN160308 Solid Carbide Insert, Grade ACP200, TiAlN - Sumitomo 12HA712
MFR# 12HA712ISO/ANSI# TPGN160308Series TP
$18.89List $23.81
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeACP200
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 12HA712 is a TPGN160308 solid carbide indexable insert, grade ACP200, TiAlN coated.
Specifications
Ansi codeTPG322
Chip breakerN
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Manufacturer gradeACP200
RakePositive
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
