Sumitomo

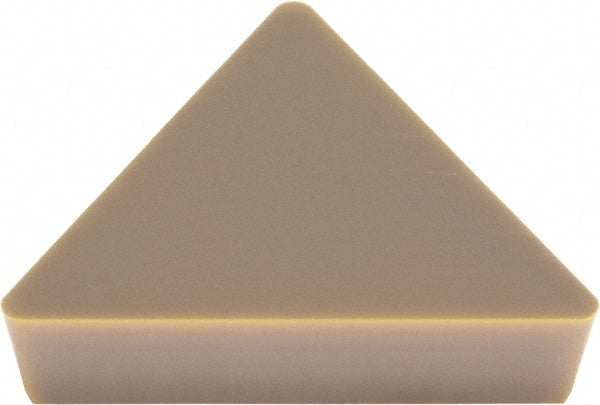

TPGN160308 Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 12HV712
MFR# 12HV712ISO/ANSI# TPGN160308Series TP
$14.43List $18.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 12HV712 is a TPGN160308 solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeTPG322
Chip breakerN
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Manufacturer gradeAC510U
RakePositive
Relief angle11
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeG
