Sumitomo

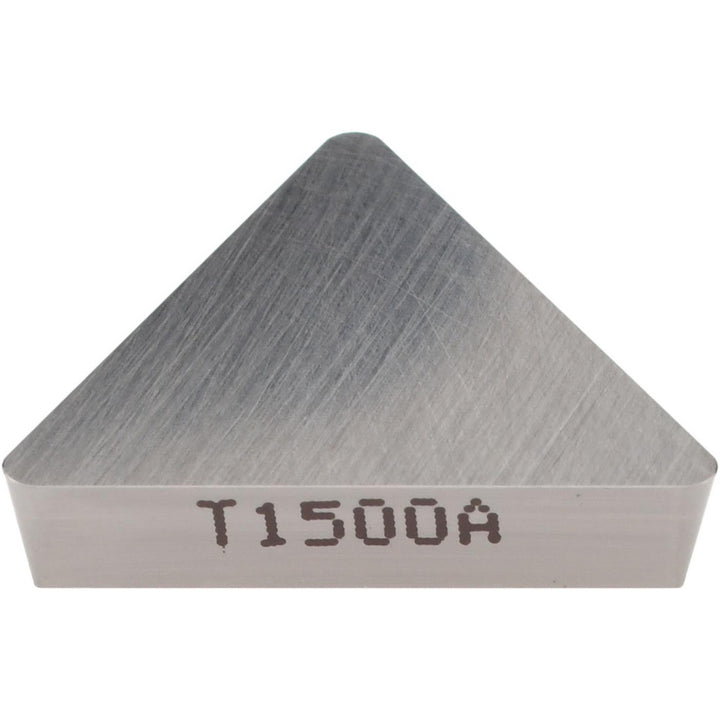

TPGN160308 Cermet Insert, Grade T1500A - Sumitomo 12JT712
MFR# 12JT712ISO/ANSI# TPGN160308Series TP
$11.57List $14.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeT1500A
MaterialCermet
Description
The Sumitomo 12JT712 is a TPGN160308 cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
