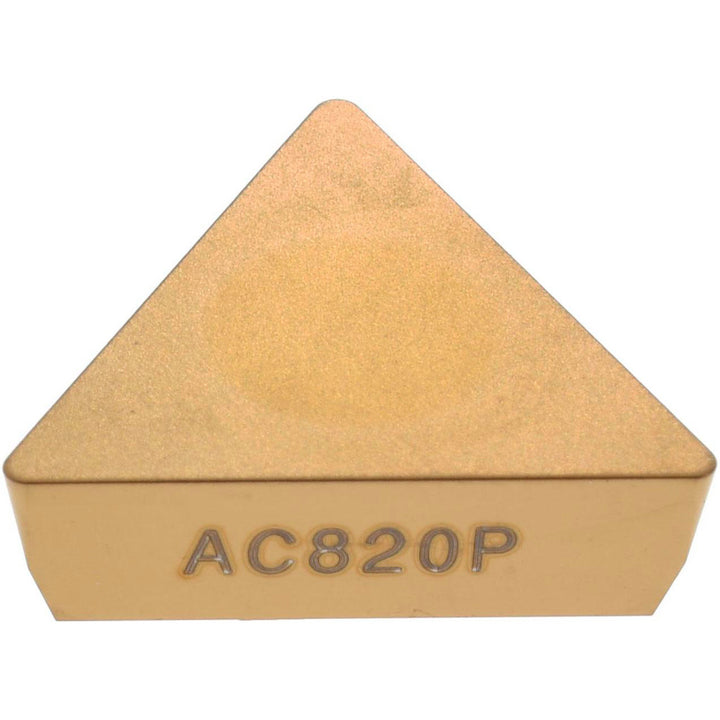

TPGN110304 Carbide Insert, Grade AC820P, Coated - Sumitomo 12RJ701

Sumitomo

TPGN110304 Carbide Insert, Grade AC820P, Coated - Sumitomo 12RJ701

MFR# 12RJ701ISO/ANSI# TPG110304Series TP

$12.88List $16.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 12RJ701 is a TPGN110304 carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeTPG221
Ansi size code221
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in1/4
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN110304
Iso insert codeTPG110304
Iso size code110304
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakePositive
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
