Sumitomo

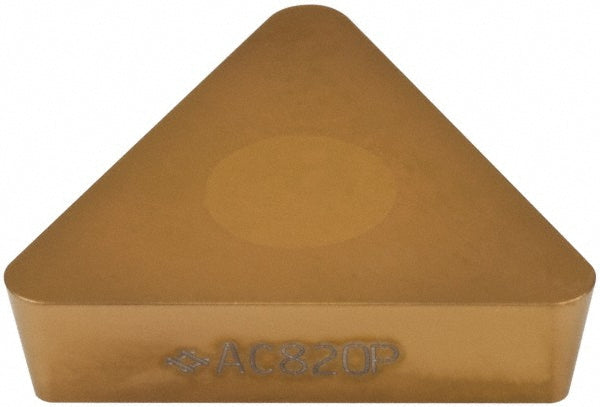

TPGN160304 Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 12RJ711
MFR# 12RJ711ISO/ANSI# TPGN160304Series TP
$15.63List $20.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 12RJ711 is a TPGN160304 solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeTPG321
Chip breakerN
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160304
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Number of cutting edges1
Primary workpiece materialM; P
RakePositive
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
