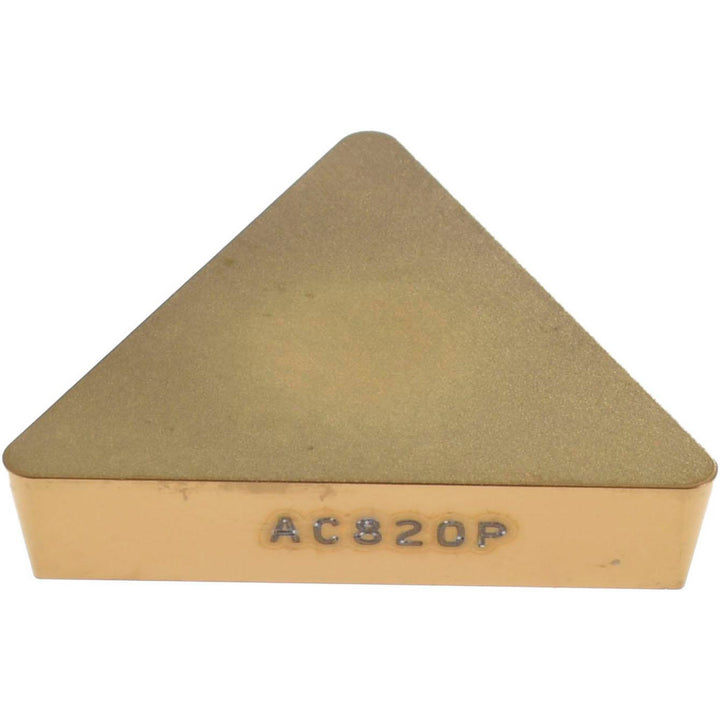

TPGN160308 Carbide Insert, Grade AC820P, Coated - Sumitomo 12RJ712

Sumitomo

TPGN160308 Carbide Insert, Grade AC820P, Coated - Sumitomo 12RJ712

MFR# 12RJ712ISO/ANSI# TPG160308Series TP

$15.63List $20.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 12RJ712 is a TPGN160308 carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeTPG322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Iso insert codeTPG160308
Iso size code160308
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Number of cutting edges1
RakePositive
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
