Sumitomo

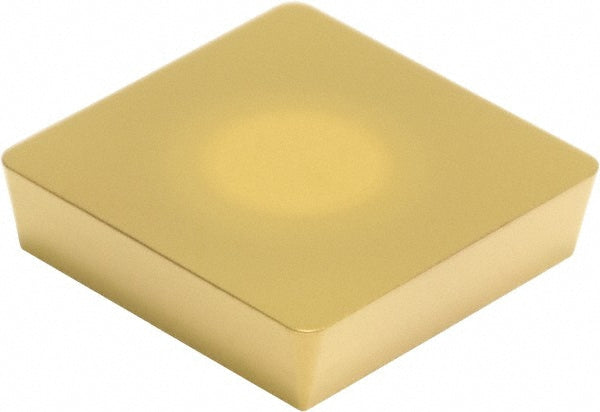

SPGN120308 Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 12RJ832
MFR# 12RJ832ISO/ANSI# SPGN120308Series SP
$16.53List $21.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 12RJ832 is a SPGN120308 solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeSPG422
Chip breakerN
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp
Insert length in1/2
Insert materialSolid Carbide
Insert shapeSquare
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso codeSPGN120308
Manufacturer gradeAC820P
RakePositive
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
Width in1/2
