Sumitomo

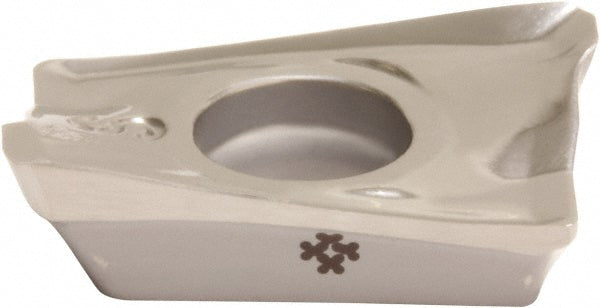

Parallelogram Solid Carbide Insert, Grade H1 - Sumitomo 1433325
MFR# 1433325
$18.20List $22.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1433325 is a solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Coating processUncoated
Corner radius0.0310
Cutting edge effective length (mm)17.54
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170508
Insert size code1705
Insert styleAXET
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeH1
Material gradeC3
Primary workpiece materialNon-Ferrous Metal
Relief angle11
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
