Sumitomo

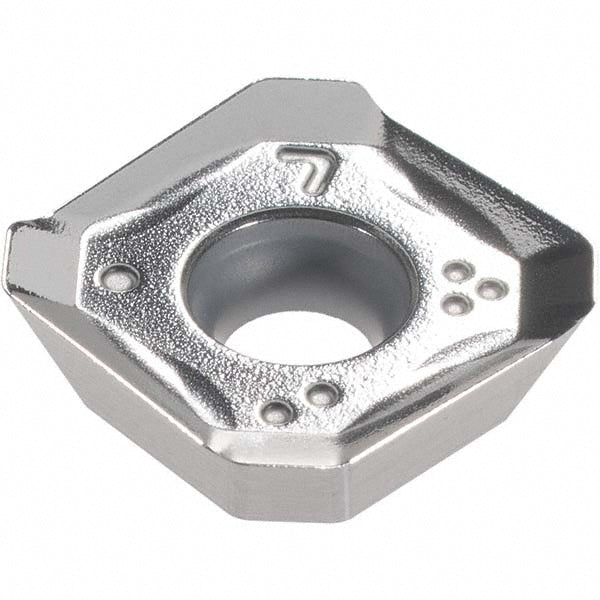

Square 0.5276" IC Solid Carbide Insert, Grade H1 - Sumitomo 1433728
MFR# 1433728
$12.03List $15.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1433728 is a solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Coating processUncoated
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert materialSolid Carbide
Insert shapeSquare
Insert size13T3
Insert size code13
Insert styleSEET
Manufacturer gradeH1
Primary workpiece materialNon-Ferrous Metal
Relief angle20
Single or double sided insertSingle
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
