Sumitomo

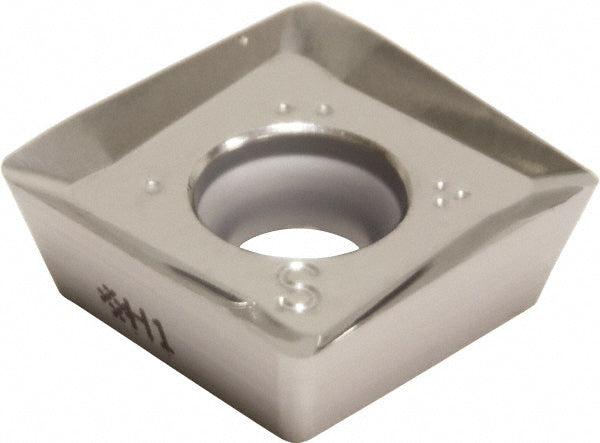

Square Solid Carbide Insert, Grade H1 - Sumitomo 1433910
MFR# 1433910
$18.97List $24.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1433910 is a solid carbide indexable insert, grade H1. Suited for cast iron, non-ferrous metal.
Specifications
Chip breakerH1
Coating processUncoated
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOET
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeH1
Material gradeC3
Primary workpiece materialCast Iron; Non-Ferrous Metal
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
