Sumitomo

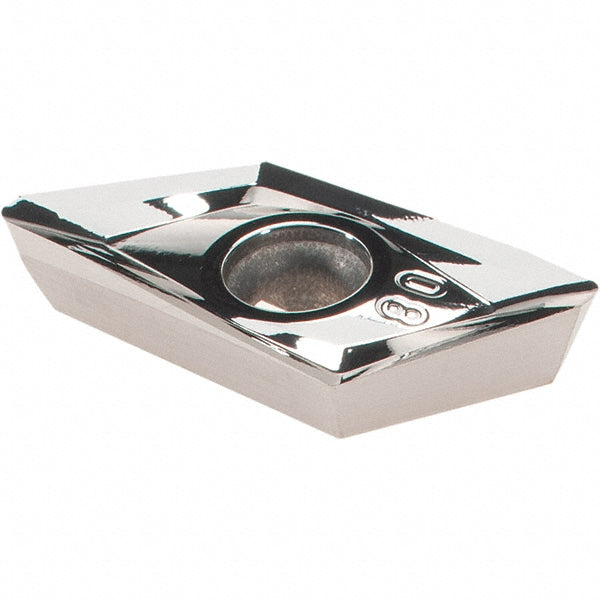

Parallelogram Solid Carbide Insert, Grade H1 - Sumitomo 1433932
MFR# 1433932
$34.57List $44.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH1
MaterialSolid Carbide
Description
The Sumitomo 1433932 is a solid carbide indexable insert, grade H1. Suited for non-ferrous metal.
Specifications
Coating processUncoated
Corner radius0.0310
Hole diameter0.1732
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size160408
Insert size code1604
Insert styleAECT
Length0.6456
Length range0.6000 to 0.6500
Manufacturer gradeH1
Material gradeC3
Maximum depth of cut0.7080
Primary workpiece materialNon-Ferrous Metal
Relief angle20
Thickness0.1968
Thickness range0.1850 to 0.2000
