Sumitomo

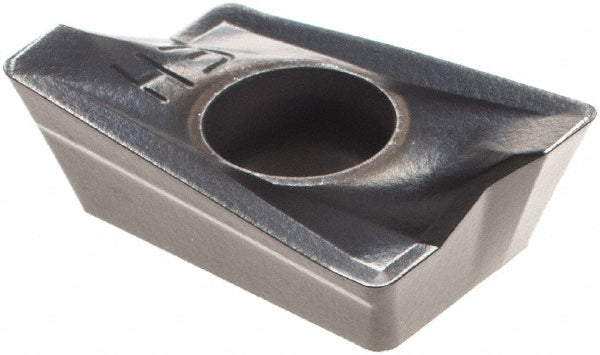

Parallelogram 0.4000" IC Solid Carbide Insert, Grade ACM200, Coated - Sumitomo 144V424
MFR# 144V424
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACM200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 144V424 is a solid carbide indexable insert, grade ACM200, Coated coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerEH
Coating finishCoated
Coating processCVD
Corner radius0.0315
Cutter series compatibilityWEX3000
Cutting edge effective length0.6890
Included angle degree85
Inscribed circle0.4000
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170508
Insert size code1235
Insert styleAXMT
Manufacturer gradeACM200
Maximum depth of cut0.5510
Primary workpiece materialStainless Steel; Superalloys
Relief angle11
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.4020
