Sumitomo

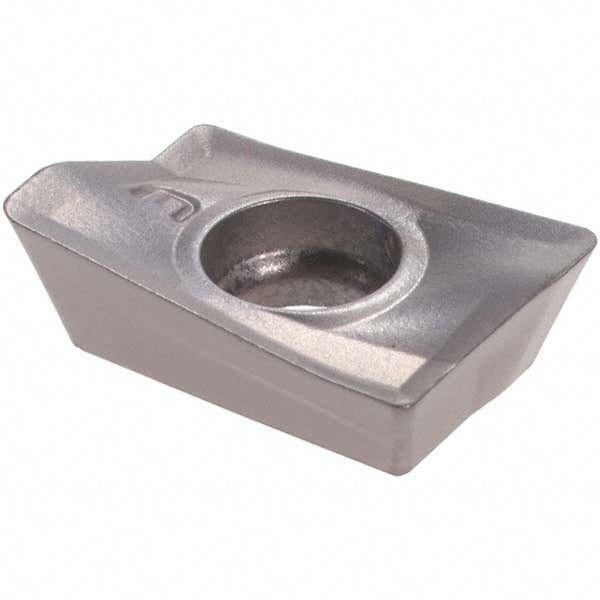

Parallelogram 0.2600" IC Solid Carbide Insert, Grade ACM300, Coated - Sumitomo 144W421
MFR# 144W421
$11.61List $14.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACM300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 144W421 is a solid carbide indexable insert, grade ACM300, Coated coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerE
Coating finishCoated
Coating processPVD
Corner radius0.0315
Cutter series compatibilityWEX2000
Cutting edge effective length0.4720
Included angle degree85
Inscribed circle0.2600
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123508
Insert size code1235
Insert styleAXMT
Manufacturer gradeACM300
Maximum depth of cut0.3940
Primary workpiece materialStainless Steel; Superalloys
Relief angle11
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2600
