Sumitomo

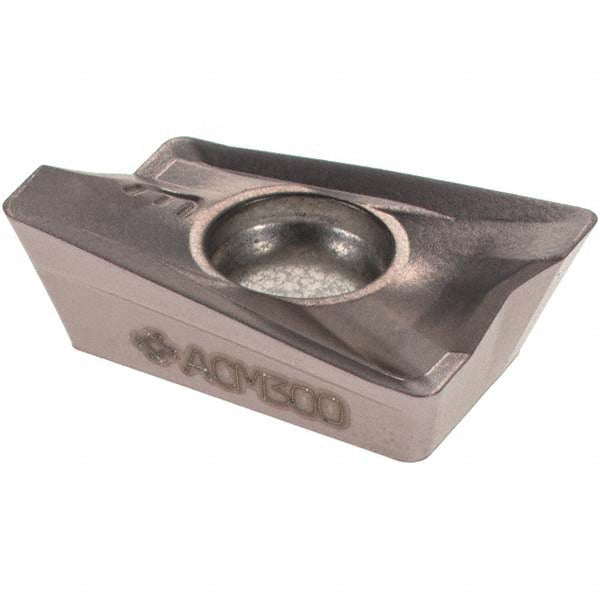

Parallelogram Solid Carbide Insert, Grade ACM300, Coated - Sumitomo 144W423
MFR# 144W423
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACM300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 144W423 is a solid carbide indexable insert, grade ACM300, Coated coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerE
Coating finishCoated
Coating processPVD
Corner radius0.0310
Cutter series compatibilityWEX3000
Cutting edge effective length0.6890
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170508
Insert size code1235
Insert styleAXMT
Manufacturer gradeACM300
Maximum depth of cut0.5510
Primary workpiece materialStainless Steel; Superalloys
Relief angle11
Thickness0.1380
Width0.4020
