Sumitomo

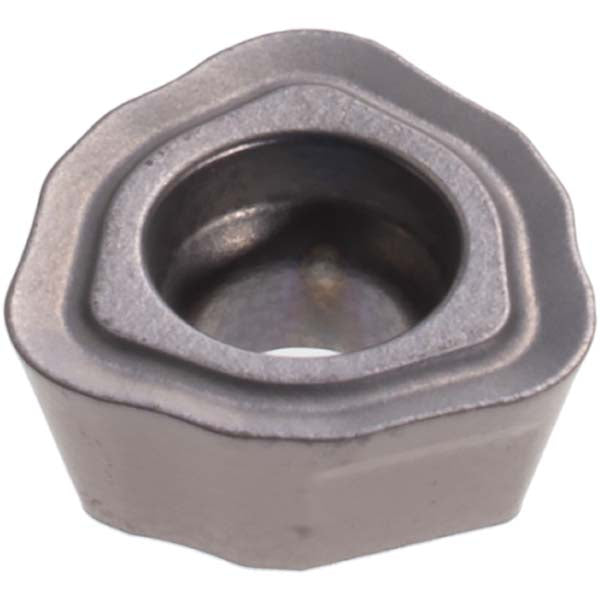

WDMT0804ZDTR ACM300 Solid Carbide Insert, Grade ACM300 - Sumitomo 144W624
MFR# 144W624ISO/ANSI# WDMT0804ZDTR ACM300
$10.95List $14.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACM300
MaterialSolid Carbide
Description
The Sumitomo 144W624 is a WDMT0804ZDTR ACM300 solid carbide indexable insert, grade ACM300. Suited for stainless steel, superalloys.
Specifications
Coating processPVD
Corner radius (mm)2.00
Cutter series compatibilityMSX
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code0804
Insert styleWDMT
Iso codeWDMT0804ZDTR ACM300
Manufacturer gradeACM300
Primary workpiece materialStainless Steel; Superalloys
Relief angle15.00
StandardsISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.3346
