Sumitomo

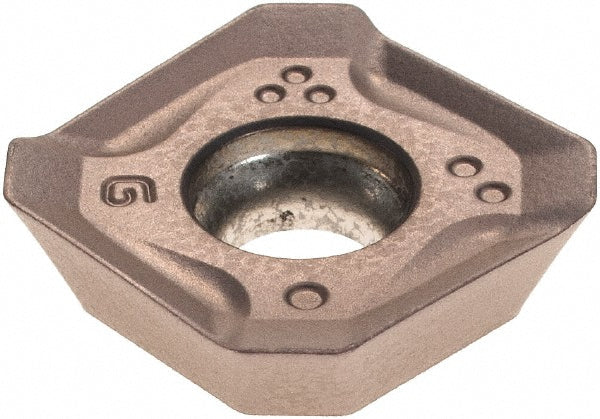

Square 1/2" IC Solid Carbide Insert, Grade ACM300, Coated - Sumitomo 144W897
MFR# 144W897
$15.15List $19.09
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeACM300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 144W897 is a solid carbide indexable insert, grade ACM300, Coated coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Cutter series compatibilityWGX
Cutting edge effective length0.5280
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeSquare
Insert size13T3
Insert size code13
Insert styleSEMT
Manufacturer gradeACM300
Primary workpiece materialStainless Steel; Superalloys
Relief angle20
Thickness0.1900
Thickness range0.1850 to 0.2000
Width0.5280
