Sumitomo
SOMT120408PDER-G-ACM300 Solid Carbide Insert, Grade ACM300 - Sumitomo 144W919
MFR# 144W919ISO/ANSI# SOMT120408PDER-G-ACM300
$19.28List $24.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeACM300
MaterialSolid Carbide
Description

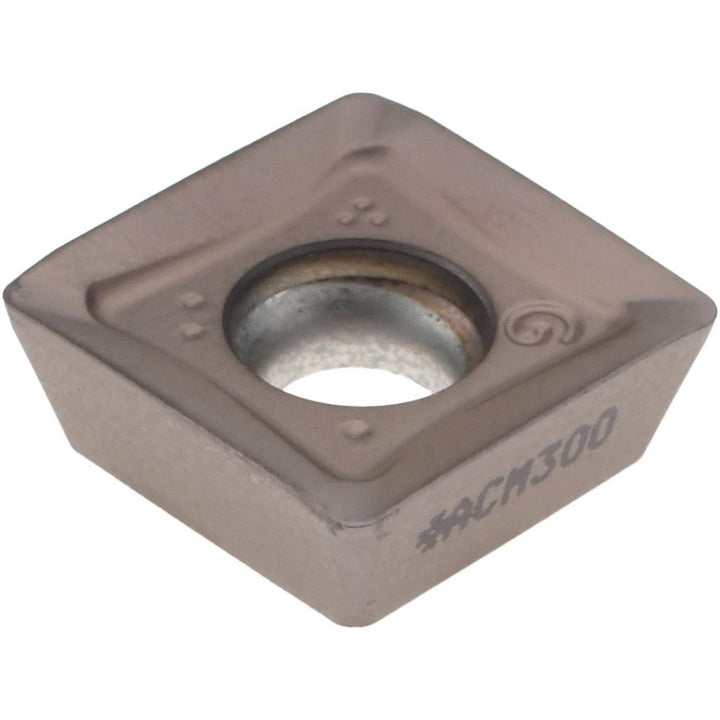

The Sumitomo 144W919 is a SOMT120408PDER-G-ACM300 solid carbide indexable insert, grade ACM300. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.0315
Cutting edge effective length0.5000
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOMT
Iso codeSOMT120408PDER-G-ACM300
Manufacturer gradeACM300
Primary workpiece materialStainless Steel; Steel
Relief angle8.00
StandardsISO
Thickness0.1900
Thickness range0.1850 to 0.2000
Width in1/2
