Sumitomo

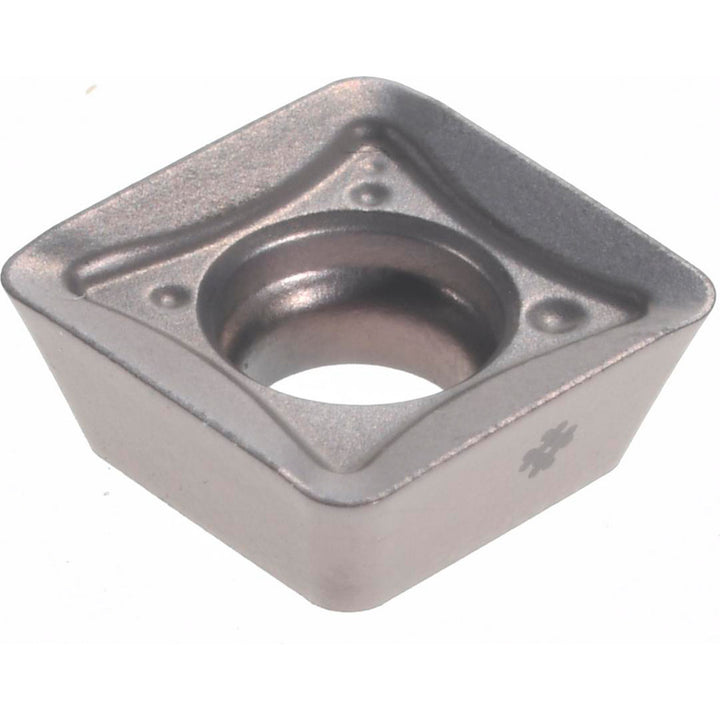

Square 0.3150" IC Solid Carbide Insert, Grade ACM300 - Sumitomo 144WAAD
MFR# 144WAAD
$14.41List $18.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACM300
MaterialSolid Carbide
Description
The Sumitomo 144WAAD is a solid carbide indexable insert, grade ACM300. Suited for stainless steel, superalloys.
Specifications
Ansi codeSOMT080308PZERG ACM300
Coating processPVD
Corner radius (mm)0.80
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert materialSolid Carbide
Insert shapeSquare
Insert size0803
Insert size code0803
Insert styleSOMT
Manufacturer gradeACM300
Primary workpiece materialStainless Steel; Superalloys
Relief angle13.00
StandardsANSI
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.3150
