Sumitomo

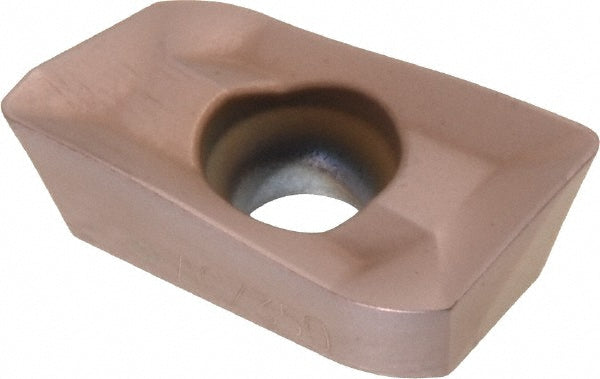

Parallelogram Solid Carbide Insert, Grade ACZ350, Coated - Sumitomo 14BX645
MFR# 14BX645
$15.21List $19.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACZ350
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14BX645 is a solid carbide indexable insert, grade ACZ350, Coated coated. Suited for stainless steel.
Specifications
Coating finishCoated
Corner radius0.0310
Cutting edge effective length (mm)16.00
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size160508
Insert size code1605
Insert styleAPMT
Length0.6300
Length range0.6000 to 0.6500
Manufacturer gradeACZ350
Material gradeC5; C5A; C6
Primary workpiece materialStainless Steel
Relief angle11
Thickness0.2180
Thickness range0.2000 to 0.2200
Width0.3750
