Sumitomo

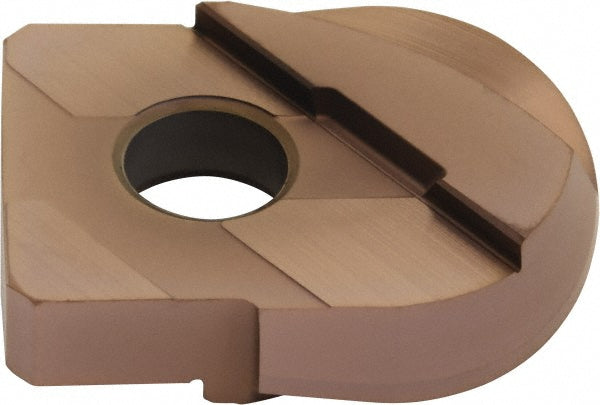

Ball Nose Rounded Tip 0.6250" IC Solid Carbide Insert, Grade ACZ120 - Sumitomo 14DVW47
MFR# 14DVW47
$48.35List $62.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose Rounded Tip
GradeACZ120
MaterialSolid Carbide
Description
The Sumitomo 14DVW47 is a solid carbide indexable insert, grade ACZ120. Suited for steel.
Specifications
Corner radius0.3125
Cutter series compatibilityWBMR
Cutting edge effective length0.8050
Inscribed circle0.6250
Inscribed circle range0.6000 to 0.7000
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size2.5
Insert size code2.5
Insert styleZPGU.S
Length0.8050
Length range0.7000 to 0.9000
Manufacturer gradeACZ120
Maximum depth of cut0.4700
Primary workpiece materialSteel
Relief angle11.00
Thickness0.2400
Thickness range0.2350 to 0.2500
