Sumitomo

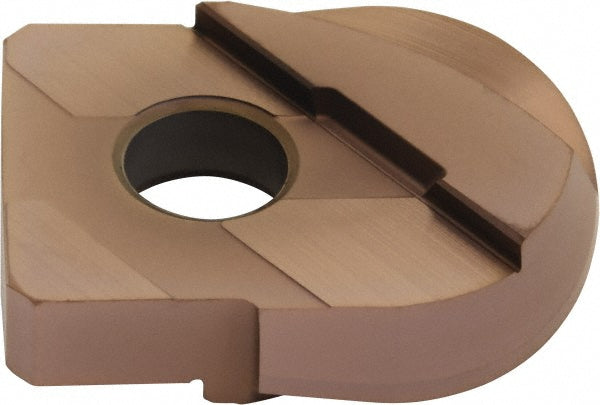

Ball Nose Rounded Tip 0.5000" IC Solid Carbide Insert, Grade ACZ120 - Sumitomo 14DVW48
MFR# 14DVW48
$44.10List $56.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose Rounded Tip
GradeACZ120
MaterialSolid Carbide
Description
The Sumitomo 14DVW48 is a solid carbide indexable insert, grade ACZ120. Suited for steel.
Specifications
Corner radius0.2500
Cutter series compatibilityWBMR
Cutting edge effective length0.7220
Inscribed circle0.5000
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeBall Nose Rounded Tip
Insert size2
Insert size code2
Insert styleZPGU.S
Length0.7220
Length range0.7000 to 0.9000
Manufacturer gradeACZ120
Maximum depth of cut0.4270
Primary workpiece materialSteel
Relief angle11.00
Thickness0.2200
Thickness range0.2200 to 0.2350
