Sumitomo

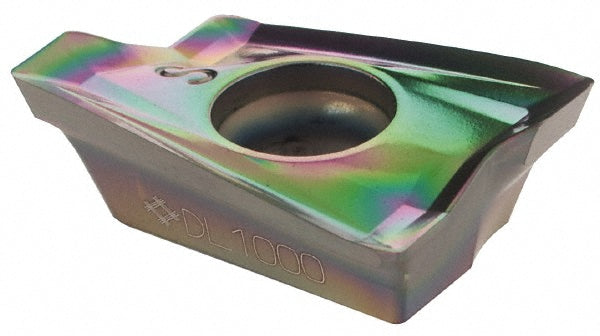

Parallelogram Solid Carbide Insert, Grade DL1000, Coated - Sumitomo 14EK324
MFR# 14EK324
$26.91List $34.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeDL1000
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14EK324 is a solid carbide indexable insert, grade DL1000, Coated coated. Suited for non-ferrous metal.
Specifications
Coating finishCoated
Coating processDLC
Corner radius0.0160
Cutter series compatibilityWEX3000
Cutting edge effective length (mm)17.54
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170504
Insert size code1705
Insert styleAXET
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeDL1000
Primary workpiece materialNon-Ferrous Metal
Relief angle11
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
