Sumitomo

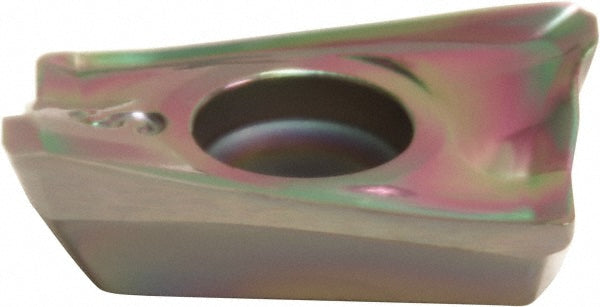

Parallelogram Solid Carbide Insert, Grade DL1000, Coated - Sumitomo 14EK326
MFR# 14EK326
$21.27List $27.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeDL1000
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14EK326 is a solid carbide indexable insert, grade DL1000, Coated coated. Suited for non-ferrous metal.
Specifications
Coating finishCoated
Coating processDLC
Corner radius0.0080
Cutter series compatibilityWEX2000
Cutting edge effective length (mm)12.00
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123502
Insert size code1235
Insert styleAXET
Length0.4720
Length range0.4500 to 0.5000
Manufacturer gradeDL1000
Primary workpiece materialNon-Ferrous Metal
Relief angle11
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
