Sumitomo

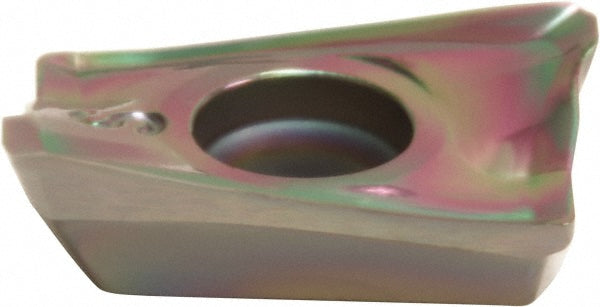

Parallelogram Solid Carbide Insert, Grade DL1000 - Sumitomo 14EK328
MFR# 14EK328
$21.27List $27.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeDL1000
MaterialSolid Carbide
Description
The Sumitomo 14EK328 is a solid carbide indexable insert, grade DL1000. Suited for non-ferrous metal.
Specifications
Coating processDLC
Corner radius0.0310
Cutter series compatibilityWEX3000
Cutting edge effective length (mm)12.00
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123508
Insert size code1235
Insert styleAXET
Length0.4720
Length range0.4500 to 0.5000
Manufacturer gradeDL1000
Primary workpiece materialNon-Ferrous Metal
Relief angle11.00
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
