Sumitomo

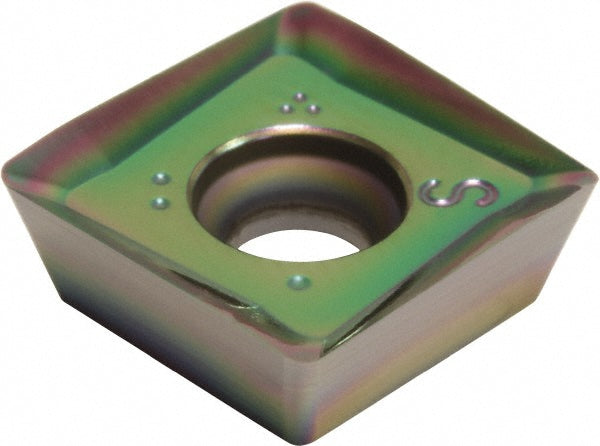

Square Solid Carbide Insert, Grade DL1000, Coated - Sumitomo 14EK910
MFR# 14EK910
$30.00List $38.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeDL1000
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14EK910 is a solid carbide indexable insert, grade DL1000, Coated coated. Suited for non-ferrous metal.
Specifications
Coating finishCoated
Coating processDLC
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOET
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeDL1000
Primary workpiece materialNon-Ferrous Metal
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
