Sumitomo

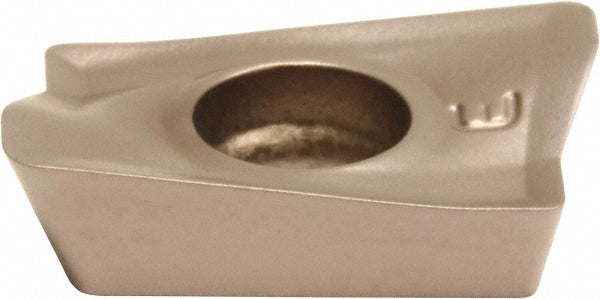

Parallelogram Solid Carbide Insert, Grade ACP100, Coated - Sumitomo 14GZ322
MFR# 14GZ322
$14.68List $18.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACP100
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14GZ322 is a solid carbide indexable insert, grade ACP100, Coated coated. Suited for steel.
Specifications
Chip breakerG
Coating finishCoated
Coating processCVD
Corner radius0.1180
Cutter series compatibilityWEX3000
Cutting edge effective length0.6890
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size170530
Insert size code1235
Insert styleAXMT
Length0.6890
Length range0.6500 to 0.7000
Manufacturer gradeACP100
Maximum depth of cut0.5510
Primary workpiece materialSteel
Relief angle11
Thickness0.2190
Thickness range0.2000 to 0.2200
Width0.4020
