Sumitomo

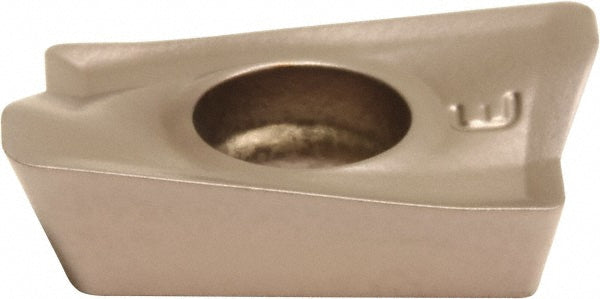

Parallelogram Solid Carbide Insert, Grade ACP200 - Sumitomo 14HA311
MFR# 14HA311
$11.61List $14.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeACP200
MaterialSolid Carbide
Description
The Sumitomo 14HA311 is a solid carbide indexable insert, grade ACP200. Suited for steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.0470
Cutter series compatibilityWEX2000
Cutting edge effective length0.4720
Included angle degree85
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size123512
Insert size code1235
Insert styleAXMT
Length0.4720
Length range0.4500 to 0.5000
Manufacturer gradeACP200
Maximum depth of cut0.3940
Primary workpiece materialSteel
Relief angle11.00
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
