Sumitomo

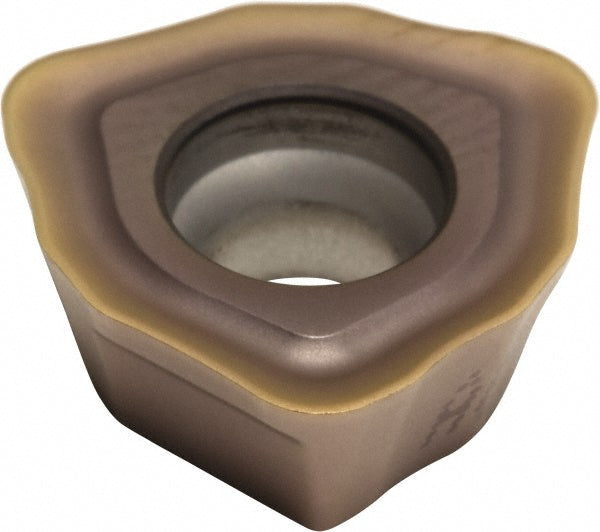

WDMT0603ZDTR ACP200 Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HA623
MFR# 14HA623ISO/ANSI# WDMT0603ZDTR ACP200
$9.77List $12.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HA623 is a WDMT0603ZDTR ACP200 solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0591
Cutter series compatibilityMSX
Included angle degree80
Inscribed circle0.2500
Inscribed circle range0.2500 to 0.3000
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0603
Insert size code0603
Insert styleWDMT
Iso codeWDMT0603ZDTR ACP200
Manufacturer gradeACP200
Primary workpiece materialStainless Steel; Steel
Relief angle15
StandardsISO
Thickness0.1181
Thickness range0.1000 to 0.1250
