Sumitomo

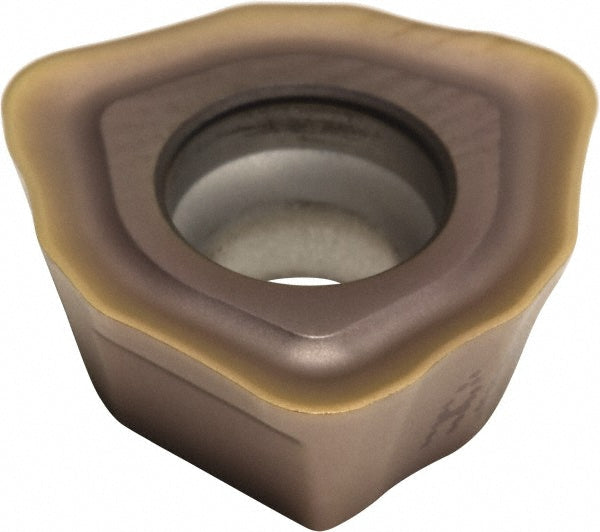

WDMT0804ZDTR ACP200 Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HA624
MFR# 14HA624ISO/ANSI# WDMT0804ZDTR ACP200
$11.73List $15.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HA624 is a WDMT0804ZDTR ACP200 solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0787
Cutter series compatibilityMSX
Included angle degree80
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert materialSolid Carbide
Insert shapeTrigon
Insert size0804
Insert size code0804
Insert styleWDMT
Iso codeWDMT0804ZDTR ACP200
Manufacturer gradeACP200
Primary workpiece materialStainless Steel; Steel
Relief angle15
StandardsISO
Thickness0.1575
Thickness range0.1500 to 0.1750
