Sumitomo

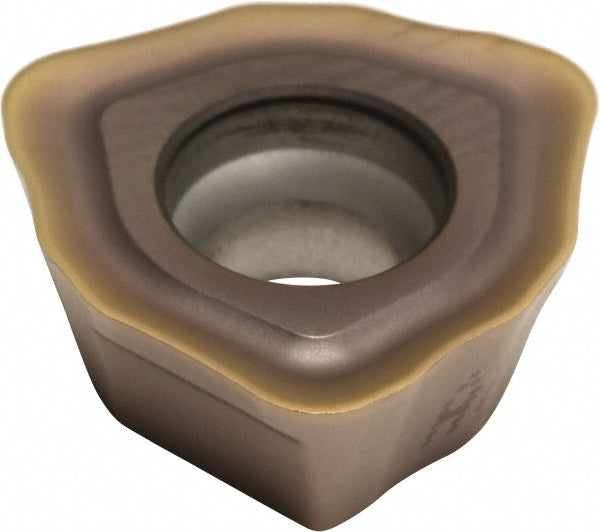

WDMT1205ZDTR ACP200 Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HA625
MFR# 14HA625ISO/ANSI# WDMT1205ZDTR ACP200
$15.64List $20.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HA625 is a WDMT1205ZDTR ACP200 solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0787
Cutter series compatibilityMSX
Included angle degree80
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert materialSolid Carbide
Insert shapeTrigon
Insert size1205
Insert size code1205
Insert styleWDMT
Iso codeWDMT1205ZDTR ACP200
Manufacturer gradeACP200
Primary workpiece materialStainless Steel; Steel
Relief angle15
StandardsISO
Thickness0.1969
Thickness range0.1850 to 0.2000
