Sumitomo

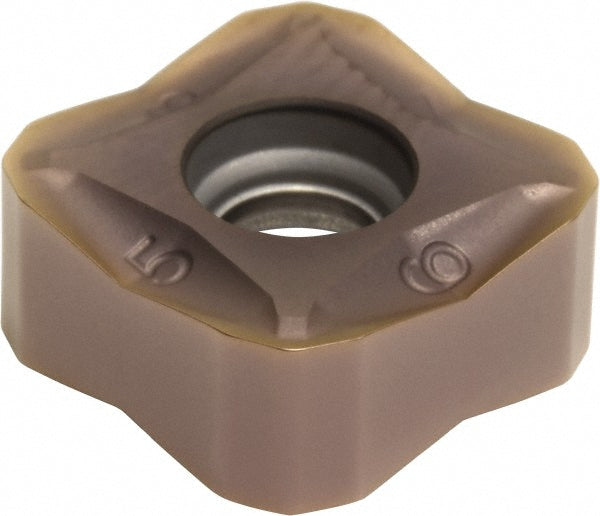

SNMT1205ZNEN-G ACP200 Solid Carbide Insert, Grade ACP200 - Sumitomo 14HA914
MFR# 14HA914ISO/ANSI# SNMT1205ZNEN-G ACP200
$16.29List $20.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACP200
MaterialSolid Carbide
Description
The Sumitomo 14HA914 is a SNMT1205ZNEN-G ACP200 solid carbide indexable insert, grade ACP200. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating processPVD
Inscribed circle0.5000
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeSquare
Insert size1205
Insert size code1205
Insert styleSNMT
Iso codeSNMT1205ZNEN-G ACP200
Manufacturer gradeACP200
Primary workpiece materialStainless Steel; Steel
Relief angle5.00
StandardsISO
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.5000
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
