Sumitomo

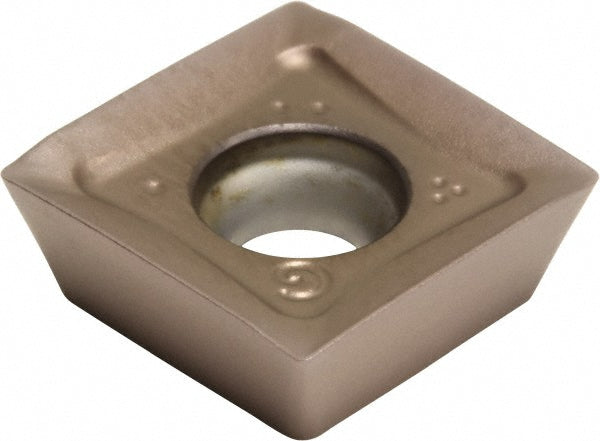

SOMT120408PDERG ACP200 Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HA919
MFR# 14HA919ISO/ANSI# SOMT120408PDERG ACP200
$19.28List $24.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HA919 is a SOMT120408PDERG ACP200 solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOMT
Iso codeSOMT120408PDERG ACP200
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeACP200
Primary workpiece materialStainless Steel; Steel
StandardsISO
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
