Sumitomo

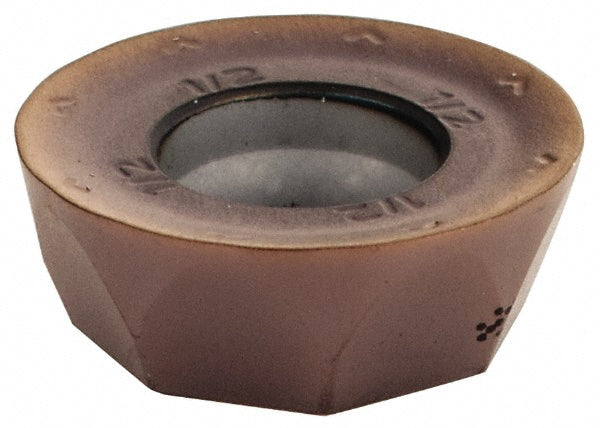

Round 0.5000" IC Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 14HAW18
MFR# 14HAW18
$15.65List $20.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 14HAW18 is a solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Ansi codeQPMT4312PPEN ACP200
Coating finishCoated
Coating processPVD
Cutter series compatibilityWRCX
Inscribed circle0.5000
Inscribed circle range0.5000 to 0.5100
Insert materialSolid Carbide
Insert shapeRound
Insert size4312
Insert size code4312
Insert styleQPMT
Manufacturer gradeACP200
Maximum depth of cut0.2500
Primary workpiece materialStainless Steel; Steel
StandardsANSI
Thickness0.1875
Thickness range0.1850 to 0.2000
